Product Specification

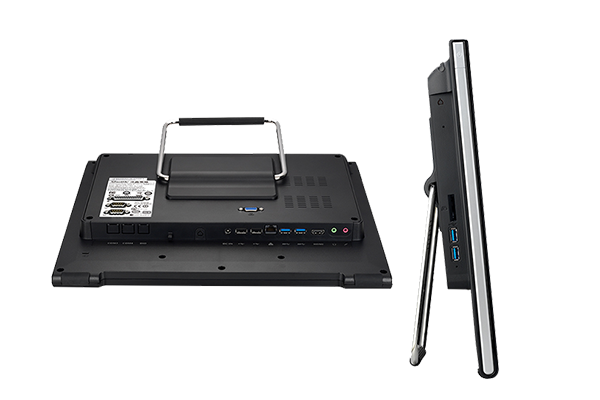

FORM FACTOR: Shuttle AIO form factor PROCESSOR: Intel Comet Lake-U Celeron 5205U 15W CPU i3-10110U MEMORY: Support DDR4 2666 Mhz memory,32GB per DIMM Max. 64G VIDEO OUTPUT: Intel® UHD Graphics STORAGE INTERFACE: 2.5" SATA3 device bay x 1 DIMENSIONS: 391.7 x 328.5 x 42.6 (mm) LCD Panel: 15.6" 16:9 Wide Panel, 1366 x 768 pixels Touch screen: Single touch Web Cam: 2MFHD Mic: Electret Condenser Microphone Wireless LAN: Realtek RTL8821CE Card Reader: SD Card Reader EXPANSION SLOT: (1) M.2 2280 Type B,M key socket (1) M.2 2230 Type A,E Key socket (WIFI pre-installed) AUDIO: Realtek ALC269 OR C-Media CM6542 2W x 2 speaker ETHERNET: Intel i219 10Mb/s,100Mb/s, 1Gb/s Support Wake-On-LAN、Wake on WLAN function POWER: Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled Left Side: Power-on button Stylus pen USB3.2 Gen1 port x 2 SD card reader Clear CMOS ACCESSORIES: Quick Guide x 1 Driver DVD x 1 65W Power Adapter x 1 power cord x 1 Thermal pad for M.2 SSD x 1 BACK PANEL: DC in USB2.0 port x 2 LAN X 1 USB3.2 Gen1 port x 2 HDMI x 1 MIC in X 1 Headphone X 1 D-sub X 1 Kensington lock
