SPCEL02/03
FORM FACTOR: Rugged aluminum chassis PROCESSOR: SPCEL02 Intel Celeron® J6412 2.60 GHz SPCEL03 Intel Atom® x6413E 3.00 GHz MEMORY: 260 pin SO-DIMM, DDR4 3200MHz Support up to 32 GB VIDEO OUTPUT: HDMI 2.0b（4096x2160@60Hz）*1 ETHERNET: Intel I226-v (PCIe) LAN controller Support Wake-On-LAN function DIMENSIONS: 120（L） x 75（W） x 51（H） mm POWER: 12V~24V DC in by 3-pin terminal block

Product Specification

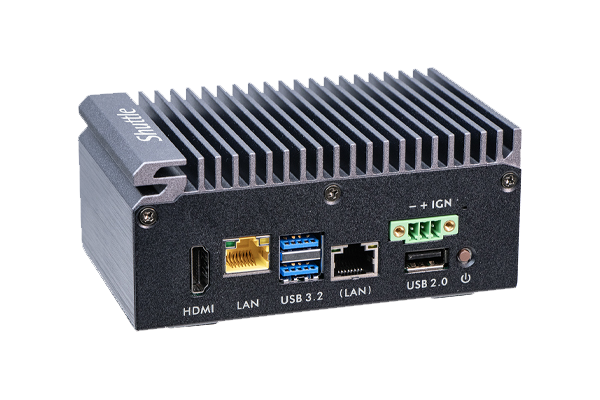

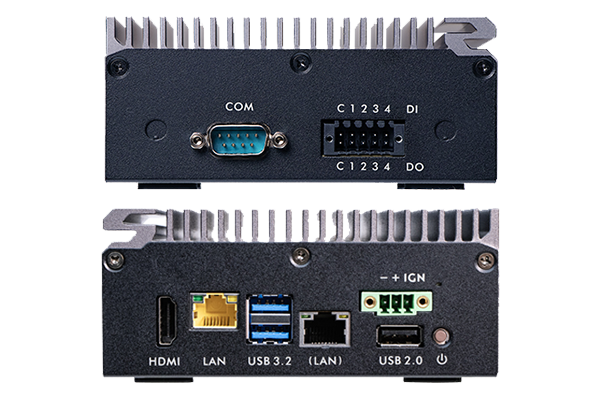

FORM FACTOR: Rugged aluminum chassis PROCESSOR: SPCEL02 Intel Celeron® J6412 2.60 GHz SPCEL03 Intel Atom® x6413E 3.00 GHz MEMORY: 260 pin SO-DIMM, DDR4 3200MHz Support up to 32 GB VIDEO OUTPUT: HDMI 2.0b（4096x2160@60Hz）*1 ETHERNET: Intel I226-v (PCIe) LAN controller Support Wake-On-LAN function STORAGE INTERFACE: SSD M.2 M 2280/ 2242 With M.2 E-Key WLAN sku, only 2242 can support FRONT PANEL: 2x USB 3.2 Gen2（Type A）*2 USB 2.0 Type A*1 RJ-45（Intel 2.5G Lan）*2 BACK PANEL: DIO*1/RS-232/422/485（DB-9*1) DIMENSIONS: 120（L） x 75（W） x 51（H） mm POWER: 12V~24V DC in by 3-pin terminal block ACCESSORIES: VESA Mount 100 x 100 mm Ear Mount Din Rail Mount 50 x 50 mm Din Rail Clip EXPANSION SLOT: 1x M.2 2242/2280 M Key slot support SATA Gen 1 1x SO-DOMM socket OS SUPPORT: Windows 10/11 IoT Enterprise 64bit O.S/Linux NET WEIGHT: 0.7KG OPERATING TEMPERATURE: 0℃~40℃（SPCEL02） -20°C~60°C（SPCEL03） EN50155:2021 OT1 (-25 to 55 °C)（SPCEL03） RELATIVE HUMIDITY: 10% - 90% RH (non-condensing) VIBRATION: EN61373 / MIL-STD-810G SHOCK: EN61373 / MIL-STD-810G EMC: CE, FCC, VCCI, BSMI, RCM, UKCA EN50121-3-2 standards SAFETY: cTUVus, CB, CEC, BSMI, UKCA WLAN: 1 x M.2 2230 E key ( Option ) Intel WiFi Module ( 802.11 a/b/g/n/ac ) + BT 5.0 Realtek RTL8821CE ( 802.11 a/b/g/n/ac ) + BT 5.0 External antenna ( Dipole )
